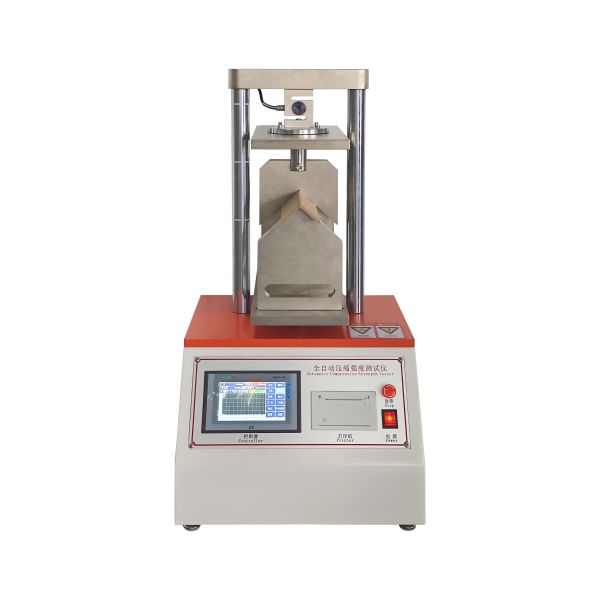

Bending Strength Testing Machine for Corner Protectors of Packaging
Cartons and Boxes
1. Overview
The Paper Angle Protector Bending Strength Tester is a testing
instrument used to measure the compressive strength of products.

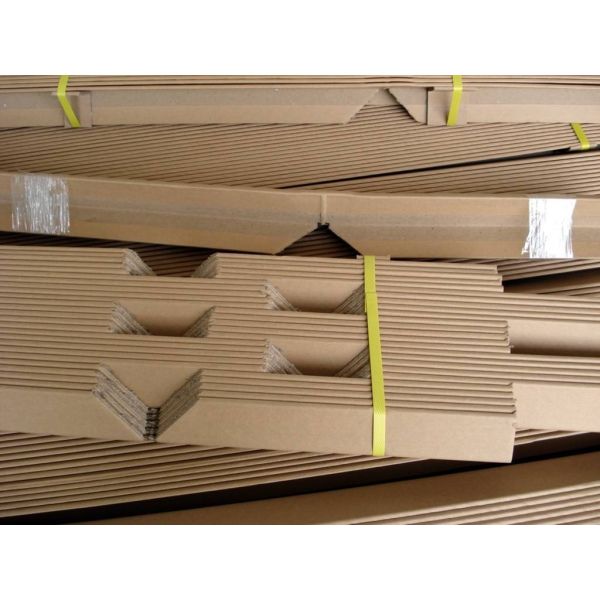

It is mainly applicable to L-type paper angle protectors, U-type
paper angle protectors, bent paper angle protectors, waterproof
paper angle protectors, wrapped paper angle protectors,
special-shaped paper angle protectors, etc.
It is an ideal testing equipment for paper angle protector
manufacturers, quality inspection institutions and other related
departments.
Standards implemented: ISO 2872, ISO 2874, GB 4857.4
Working Principle of Bending Strength Testing Machine for Corner
Protectors of Packaging Cartons and Boxes?
Parameters
Item | Value |
|---|
Load Measuring Range | 500 kg |
Resolution | 0.01 N |
Indicating Error of Load Accuracy | ±2% |
Indicating Variation | ≤2% |
Zero Return Error | ±0.2% FS |
Standard Pressurizing Speed | 10–100 mm/min (Adjustable) |
Parallelism Between Upper and Lower Plates | ≤0.2 mm |
Upper Plate Travel | 300 mm |
Machine Dimensions | 40×40×80 cm |
Power Supply | AC 220 V |
Ambient Temperature | 20 ℃ ± 10 ℃ |
Power Supply Details | AC 220 V ± 22 V, 50 Hz, Max. current 3 A, reliably grounded |
| Bending Strength Testing Machine for Corner Protectors of Packaging
Cartons and BoxesThe Paper Angle Protector Bending Strength Tester is a testing
instrument used to measure the compressive strength of products. It
is mainly applicable to L-type paper angle protectors, U-type paper
angle protectors, bent paper angle protectors, waterproof paper
angle protectors, wrapped paper angle protectors, special-shaped
paper angle protectors, etc. It is an ideal testing equipment for
paper angle protector manufacturers, quality inspection
institutions and other related departments. |
|
What is the working principle of a corner bend strength tester for
packaging cartons?The L-shaped paper corner protector sample is placed on a bending
support with a spacing of 200mm. A 90° rigid loading head is
pressed down on the middle of the sample at a uniform speed of
(100±10)mm/min. The sensor collects the force value in real time
and records the maximum bending force when the sample is crushed,
thereby determining the bending strength of the corner protector. |  |
Product Application
PACKING AND TRANSPORTATION
