Material Tensile Testing Machine

Ask Lasest Price
Brand Name :	Dongjun
Model Number :	DJ-355
Certification :	ISO9001，CE，
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	500pcs
Delivery Time :	15-25Work days

Add to Cart

Product Details
Company Profile

Material Tensile Testing Machine

Product use

Material Tensile Testing Machine, is professionally specialized in plastic film, composite, soft packaging materials, plastic hose, adhesive, adhesive tape, medical adhesive, medical device, release paper, protective film, composite cover, metal foil, diaphragm, backboard material, non-woven fabric, rubber, paper and other products of tensile, peeling, deformation, tear, bonding, puncture force, opening force, low speed unwinding force, pull force and other performance tests.

Parameters

Load capacity	5-500kg
Load cell brand	Germany brand TECSIS load cell
Motor	400w Panasonic servo motor
Driver	400w Panasonic servo driver
Screw	High precision ball screw
Control way	Panel control , connected to computer
Adjustable speed	0.1-500mm/min
Vertical test space	1500mm (including clamp)
Load resolution	1/250,000
Load accuracy	≤0.5%
Unit switching	gf/kgf/N//kN/LBf/T
Dimension	(LWH) 5504301700mm
Suttle weight	About 75KG
Power	AC 220V
Protective cover	Nylon cloth with size of 110151500mm

Feature:
Ten Processes Meet Variegated Requirements:The machine integrates ten professional and independent test procedures, such as tension, peeling, tearing, heat sealing, constant extension and tension, pressure, puncture retention force, etc., providing users with a variety of test items.
It supports the downward pressure test such as rubber plug puncture and ampule breaking force, and the test speed can be set freely.
Intelligent design such as limit protection, overload protection and automatic return to ensure operational safety.
Excellent testing mechanism accuracy upgrade:
Equipped with force value testing system of global famous brands to provide force value accuracy better than level 0.5, better repeatability and more flexible testing.
Equipped with servo operation system of global famous brand and precision ball screw multiple axis positioning technology to provide displacement accuracy better than 0.5 level, stepless speed regulation, convenient use and more stable operation.
High End Embedded Computer System Platform Safety And Easy:
Integrated system design, integration of instrument and software.
Support group test data comparison and analysis, with multiple unit conversion function.
The system is embedded with USB interface and network interface to facilitate the external access and data transmission of the system.

Structure

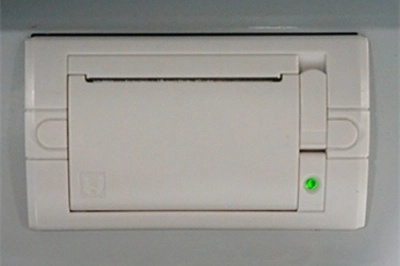

Built-in Printer

Can print out the testing report directly once the testing finished

Computer Connector
The system incorporates a USB interface or network port to facilitate data transfer and access.

Sensor
It is more accurate to install protective devices without interference from the outside world

Limit Protection
Limit lever is mainly used for misoperation or machine shutdown to ensure high precision and smooth

Company Profile

PACKING AND TRANSPORTATION

FAQ

How to install and use the product?

The product is shipped with an operating instructions and video of English version.or we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.

How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
